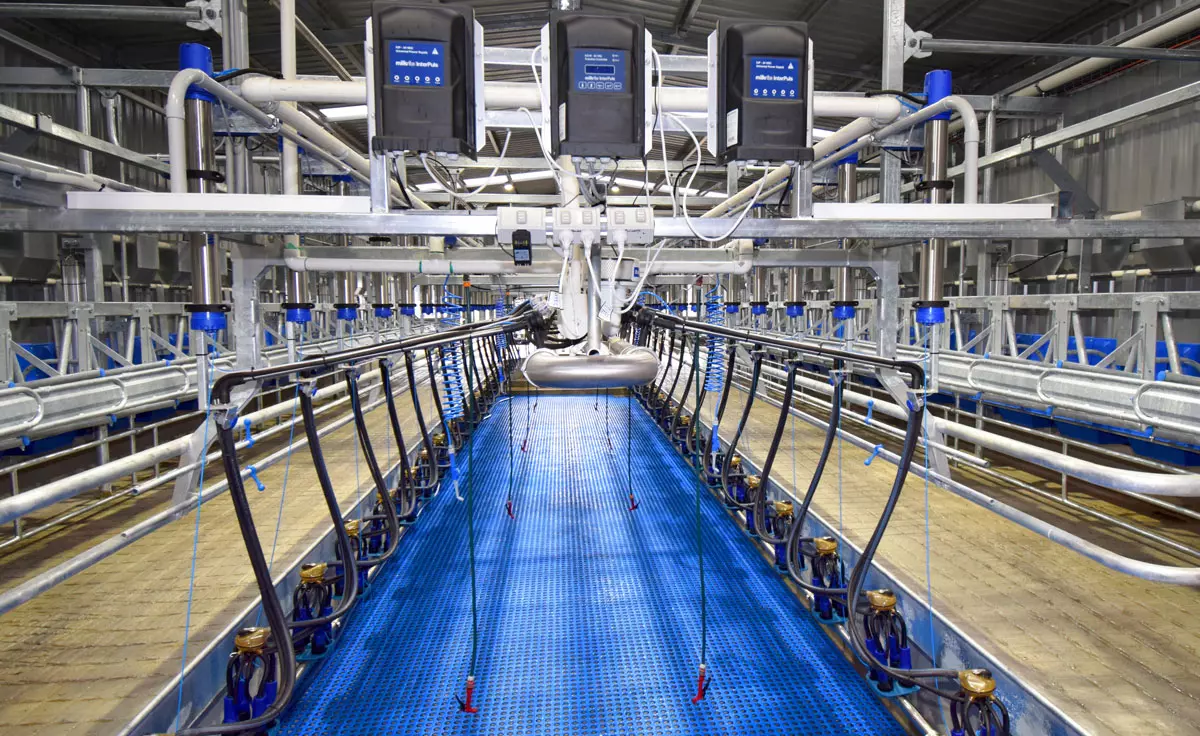

(Double Up) – Where clusters are mounted down both sides of the pit and milk the one cow.
TECH-LINE BAILING
The Australian Made Tech-Line (Larsen style) stalling system is designed for End Exit installations.
The system can include:
- The bailing or cow location system
- The stall work – or A Frame and kick / breech rail assembly
- Entry and exit gates
- Entry areas
TECH-LINE E-X1 END EXIT STALL SYSTEM
The Tech-Line E-X1 end exit stall system simply ensures that each cow has her own space to eat and stand while being milked. A relaxed cow will milk more freely, helping to make milking a more pleasant task.
The E-X1 is basically closed to cows on the platform except for the last bail, ensuring cows always walk to the first cow position. As the first cow enters, the flap gate is activated, opening the second bail position, and so on.
Feed bins and adjustable breast rail are all standard features.
The latest improvement to the system is now using a pneumatic compressed air ram on each bail rather than the traditional vacuum cylinder. A pneumatic ram ensures a positive movement every time, being able to lift the gate from between cows that are packed tightly together. This also allows the plant vacuum and reserve to be used for what should be its only purpose – providing a quick, clean and efficient milking.
In a total bailing system we also include an anti-jump bar to ensure the cow cannot jump into the feed bin which could result in damage to the bailing, feed bin or pneumatic ram and controls.
COWS ENTERING DAIRY
COWS EXITING DAIRY
TECH-LINE E-X1 ENTRY GATE SYSTEMS
All have wide open areas for easy cow access.
Vertical Lift – Gate Style
This square section gate is mounted on a post, and moves vertically with the assistance of a counterweight. When the anchor chain is released the gate will travel upwards due to the counterweight. The operator then pulls the gate down behind the cow and locks the chain over one of the provided hooks.
The gate has the advantage of swinging to wrap around the back of cows and bring them into the platform.
Pendulum Style (Compressed Air Operation) – Gate Style
The E-X1 pendulum style entry gate is driven off a compressed air ram. This provides a more positive operation due to the consistency of air pressure, and does not use vacuum that is required for a clean efficient milking. This entry gate is lifted by a simple flick of a cable that runs the length of the pit, and falls under its own weight.
TECH-LINE E-X1 EXIT GATE SYSTEMS

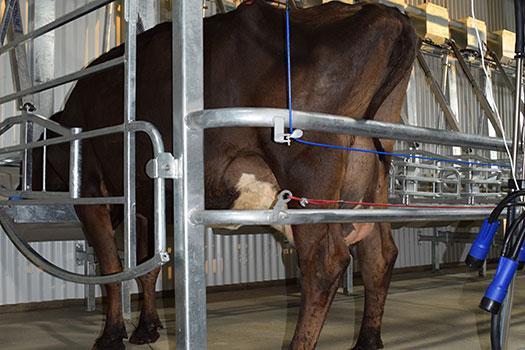

The Tech-Line E-X1 Pendulum Style exit gate simply improves on what generations of farmers have known – a simple robust system is essential for day to day operation.
Manual Operation – The gate can be controlled manually off a rail running down the length of the pit and equally spaced handles.
Pneumatic – Pull Cable – The same gate can also be controlled with a compressed air ram. Using the same gate and system, this option is lifted by a simple flick of a cable that runs the length of the pit.
TECH-LINE E-X1 STALL WORK
As part of the integrated Tech-Line bailing system, we can also supply the “stall work” system.
This will include:
- Nibs for the edge of the pit
- Kick rail
- Breach rail
- A frame assembly
- Roof support
- Lead in race system
XTREME 90 BAILING
Daviesway Xtreme 90 Heavy Duty Bailing System can be configured for both END EXIT and RAPID RELEASE installation.
END EXIT DAIRY
An End Exit dairy can be used for both a swing over or double up milking machine configuration.
Daviesway provide numerous specifications for bailing, milking machine and feeding systems for this style of installation.
RAPID RELEASE DAIRY
A Rapid Release system is normally configured with a double-up milking machine.
The key advantage is speed: as soon as the clusters are removed from the cows on one side, they can exit quickly—allowing the next side to start milking much faster than with an end-exit setup. To maximise efficiency, each cow position is equipped with its own dedicated cluster.
