Design to simultaneously wash both inside and external head of liner. The “rubber cup” jetter is available in three sizes: 35mm, 40mm and 45mm to suit a variety liner styles.
Daviesway Jetter Range brochure
FEATURES
- 3 sizes available to match the head size of liners – 35mm, 40mm, 45mm
- Variable Flow Non Return Valve to ensure all clusters wash correctly
- Also Washes the Head of the liner
- Mounting Options
- Fixed Overhead
- Fixed Low-Line (Requires Milking Cluster Support) - Available in the same configuration with cover.
PRODUCTS
- CODE: 489 – VARI-FLO – No. 4 RUBBER CUP - COMPLETE TO FIT 38MM TUBE
- CODE: 489/1 – VARI-FLO – No. 4 RUBBER CUP - COMPLETE TO FIT 51MM TUBE
- CODE: 489/2 – VARI-FLO – No. 4 RUBBER CUP - COMPLETE TO FIT RUBBER HOSE MOUNT

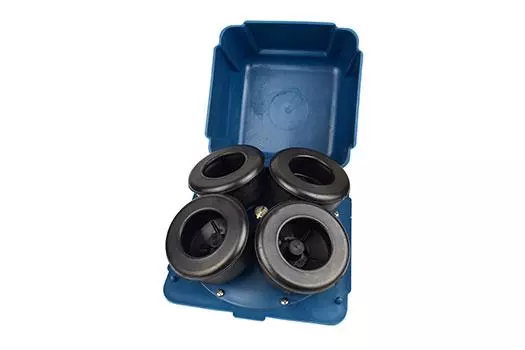

- CODE: 0508 – VARI-FLO – No. 4 RUBBER CUP - COMPLETE WITH COVER TO FIT 38MM TUBE
- CODE: 0508/1 – VARI-FLO – No. 4 RUBBER CUP - COMPLETE WITH COVER TO FIT 51MM TUBE
- CODE: 0508/2 – VARI-FLO – No. 4 RUBBER CUP - COMPLETE WITH COVER TO FIT RUBBER HOSE MOUNT
SPARE PARTS

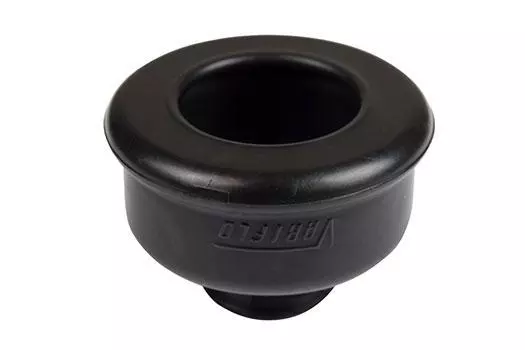

- CODE: 0493 – No 4 RUBBER CUP 45mm OPENING
- CODE: 0493/1 – No 4 RUBBER CUP 35mm OPENING

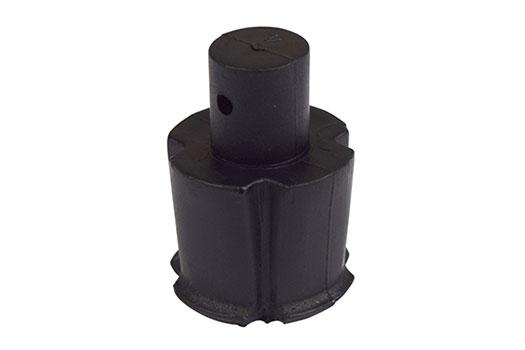

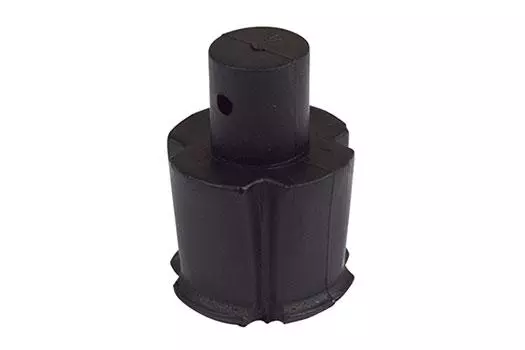

- CODE: 0494 – HOLDING PULG No 4 RUBBER CUP
- CODE: 0495 – “O” RING for Standard Nozzle
- CODE: 0496 – NOZZLE PLATE - ROUND
- CODE: 0498 – BASE (back plate) 38mm with DOUBLE SADDLE PACK
- CODE: 0498/1 – BASE (back plate) 51mm with DOUBLE SADDLE PACK
- CODE: 0497 – LARGE “O” RING for JETTER BODY
- CODE: 0504/6 – JETTER NON–RETURN VALVE
- CODE: 0510 – BODY SET ONLY 38mm (No nozzles) with saddle pack
- CODE: 0510/1 – BODY SET ONLY 51mm (No nozzles) with saddle pack
- CODE: 0504 – BASE PLATE with HOSE MOUNT NIPPLE
- CODE: 0501 – METERING SCREW
- CODE: 0502 – BASE PLATE BODY SCREW
- CODE: 0504/3 – VARIFLO JETTER COVER with hinge and screws
- CODE: 496/1 – NOZZLE PLATE - SQUARE
- CODE: 0504/4 – COVER HINGE:
