“Button” style jetter features a conical shape, enables the liner to slide easily over the nozzle and lock into position. Best suited to 21-23mm diameter mouthpiece liners.
Daviesway Jetter Range brochure
FEATURES
- Conical Shape to suit 21mm-23mm diameter mouthpiece liners
- Available in 3 configurations
– Fit 38mm tube
– Fit 51mm tube
– Hose mounting - Variable Flow Non Return Valve to ensure all clusters wash correctly
- Recommended use
– Fixed Overhead
– Fixed Low-Line (Requires Milking Cluster Support)
– Hose-Mount (Requires Cluster Support)
PRODUCTS

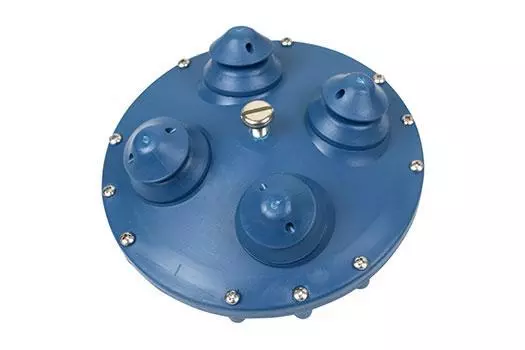

- CODE: 0486 – VARI-FLO – No. 1 JETTER - COMPLETE TO FIT 38MM TUBE
- CODE: 0486/1 – VARI-FLO – No. 1 JETTER - COMPLETE TO FIT 51MM TUBE
- CODE: 0486/2 – VARI-FLO – No. 1 JETTER - COMPLETE TO FIT RUBBER HOSE MOUNT

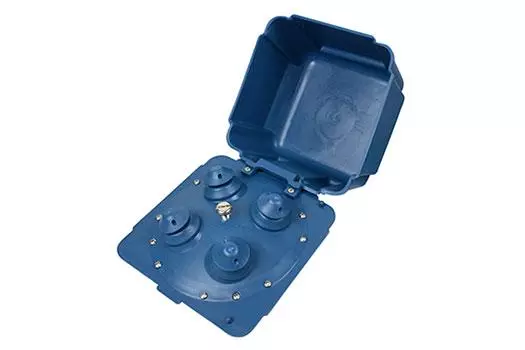

Available in the same configuration with cover.
- CODE: 0505 – VARI-FLO – No. 1 JETTER - COMPLETE WITH COVER TO FIT 38MM TUBE
- CODE: 0505/1 – VARI-FLO – No. 1 JETTER - COMPLETE WITH COVER TO FIT 51MM TUBE
- CODE: 0505/2 – VARI-FLO – No. 1 JETTER - COMPLETE WITH COVER TO FIT RUBBER HOSE MOUNT
SPARE PARTS
- CODE: 0490 – No 1 STANDARD NOZZLE (without "O" ring)
- CODE: 0495 – “O” RING for Standard Nozzle
- CODE: 0496 – NOZZLE PLATE - ROUND
- CODE: 0498 – BASE (back plate) 38mm with DOUBLE SADDLE PACK
- CODE: 0498/1 – BASE (back plate) 51mm with DOUBLE SADDLE PACK
- CODE: 0497 – LARGE “O” RING for JETTER BODY

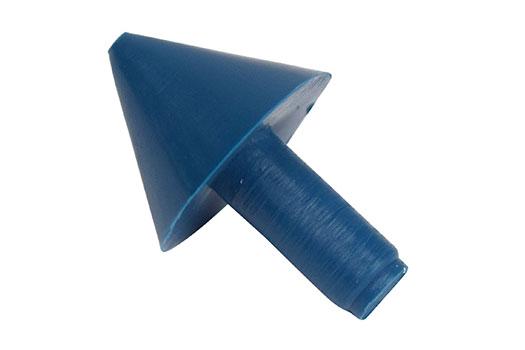

- CODE: 0504/6 – JETTER NON–RETURN VALVE
- CODE: 0510 – BODY SET ONLY 38mm (No nozzles) with saddle pack
- CODE: 0510/1 – BODY SET ONLY 51mm (No nozzles) with saddle pack
- CODE: 0504 – BASE PLATE with HOSE MOUNT NIPPLE
- CODE: 0501 – METERING SCREW
- CODE: 0502 – BASE PLATE BODY SCREW
- CODE: 0504/3 – VARIFLO JETTER COVER with hinge and screws
- CODE: 496/1 – NOZZLE PLATE - SQUARE
- CODE: 0504/4 – COVER HINGE:
