The “clip” jetter suits all liner sizes and the majority of shell sizes, has variable mounting options and the nozzle clip holds each shell securely while washing.
Daviesway Jetter Range brochure
FEATURES
- Suits all liner sizes and the majority of shell sizes, the clip in Nozzle holds each shell while washing
- Variable Mounting Options
- Fixed Low-Line (Does not require Milking Cluster Support)
PRODUCTS
- CODE: 0511 – VARI-FLO – No. 6 CLIP NOZZLE JETTER - COMPLETE TO FIT 38MM TUBE
- CODE: 0511/1 – VARI-FLO – No. 6 CLIP NOZZLE JETTER - COMPLETE TO FIT 51MM TUBE
- CODE: 0511/2 – VARI-FLO – No. 6 CLIP NOZZLE JETTER - COMPLETE TO FIT RUBBER HOSE MOUNT
- CODE: 0512 – VARI-FLO – No. 6 CLIP NOZZLE JETTER - COVERSION KIT

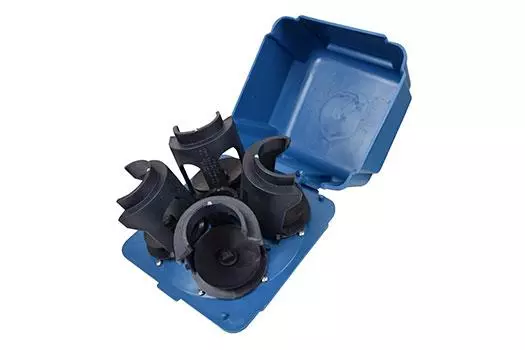

Available in the same configuration with cover.
- CODE: 0513 – VARI-FLO – No. 6 CLIP NOZZLE JETTER - COMPLETE WITH COVER TO FIT 38MM TUBE
- CODE: 0513/1 – VARI-FLO – No. 6 CLIP NOZZLE JETTER - COMPLETE WITH COVER TO FIT 51MM TUBE
- CODE: 0513/2 – VARI-FLO – No. 6 CLIP NOZZLE JETTER - COMPLETE WITH COVER TO FIT RUBBER HOSE MOUNT
SPARE PARTS
- CODE: 0512/1 – No 6 CLIP NOZZLE COMPLETE SINGLE (without "O" ring)

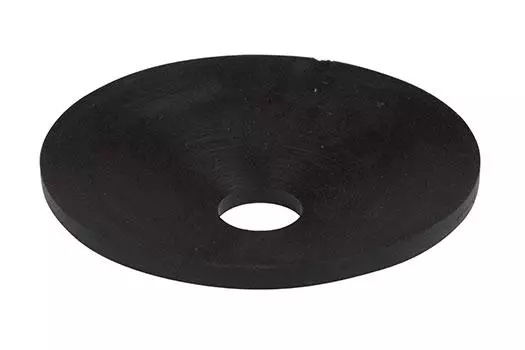

- CODE: 0512/2 – No 6 CLIP NOZZLE RUBBER DISH

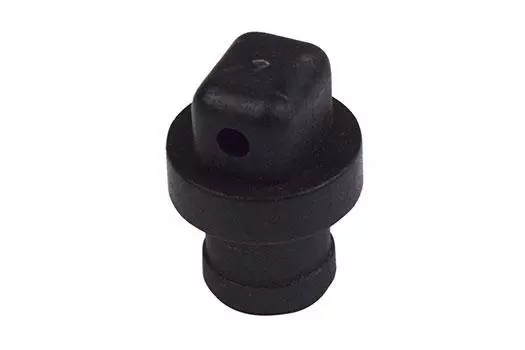

- CODE: 0512/3 – No 6 CLIP NOZZLE HOLDING PLUG

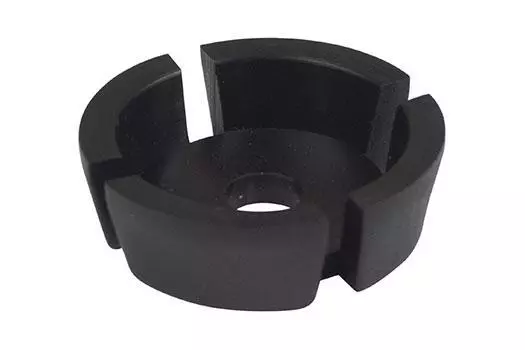

- CODE: 0512/4 – No 6 CLIP NOZZLE SET RETAINER
- CODE: 0495 – “O” RING for Standard Nozzle
- CODE: 0496 – NOZZLE PLATE - ROUND
- CODE: 0498 – BASE (back plate) 38mm with DOUBLE SADDLE PACK
- CODE: 0498/1 – BASE (back plate) 51mm with DOUBLE SADDLE PACK
- CODE: 0497 – LARGE “O” RING for JETTER BODY
- CODE: 0504/6 – JETTER NON–RETURN VALVE
- CODE: 0510 – BODY SET ONLY 38mm (No nozzles) with saddle pack
- CODE: 0510/1 – BODY SET ONLY 51mm (No nozzles) with saddle pack
- CODE: 0504 – BASE PLATE with HOSE MOUNT NIPPLE
- CODE: 0501 – METERING SCREW
- CODE: 0502 – BASE PLATE BODY SCREW
- CODE: 0504/3 – VARIFLO JETTER COVER with hinge and screws
- CODE: 496/1 – NOZZLE PLATE - SQUARE
- CODE: 0504/4 – COVER HINGE:
Vari-Flo No 6 Jetter – Daviesway Milking Equipment Australia
