Triangular Liners, Milkrite Triangular Vented Milking Inflations

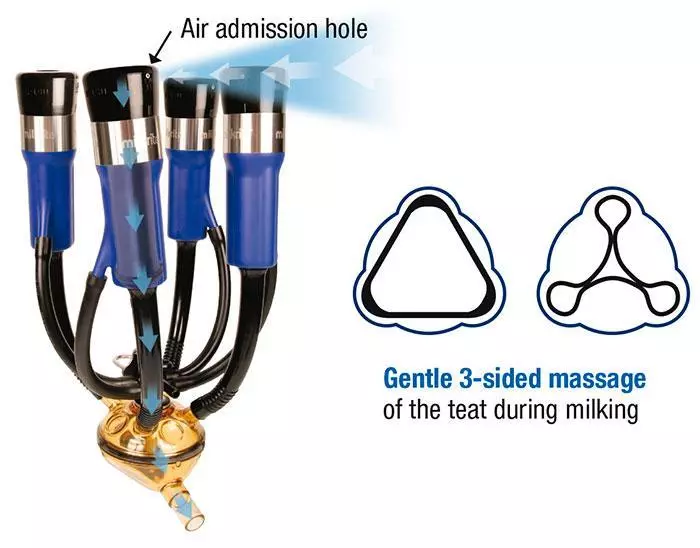

Almost half of US dairy farmers and the five of the world’s biggest dairies are using triangular vented liners. For over a decade, the Milkrite/InterPuls award-winning Triangular Liner and internally moulded Triangular Shell combination has delivered a gentler milking by evenly distributing inflation pressure from three sides. This easy-to-install liner fits most claws and is made from the highest-grade food quality rubber.

FEATURES

Key benefits – Mouthpiece Vented Triangular Liner

– Reduced teat to teat contamination
– More efficient milk removal
– Exceptional cow comfort
– Improves teat condition
– Reduced slips and kick-offs
– Easier cluster removal.

Click here for full range of Daveisway Claws

TECHNICAL

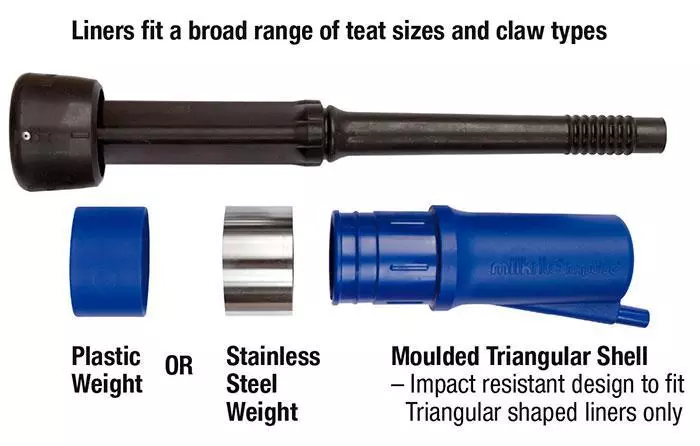

Daviesway provide a broad range of Mouthpiece Vented and Non-Vented Triangular milking liners in both wide and narrow bore sizes.

The wide bore IP15HV Liner is our most popular Triangular Vented milking liner – best suited to herds with predominately medium to larger teats and fits a 12-14 mm angled claw nipple.
IP10HV and 13HV Liner has the same specifications as the IP15 HV, however the IP10 HV Liner fits a 13mm straight cut claw nipple and 13HV Liner fits a DeLaval Harmony Claw.

Please view the table below or consult your local Milking Machine Dealer for more information regarding the best Triangular Liner for your dairy cows.

Milkrite Liner & Shell Specifications

LINER	Vented / Non-vented	Shell	CLAW MILK NIPPLE SIZE (mm)	Bore	Triangular / Round	Pre-Collapse Point	Equivalent
IP10 HV*	Vented	IP15	13mm	Wide	Triangular	Yes
IP10-01 HV*	Vented	IP15	13mm	Wide	Triangular	Yes	SMT 25mm shorter
Note: Liners with a pre-collapse point are designed for use with straight cut milk nipples
IP12 HV*	Vented	IP15	11mm	Wide	Triangular
IP13 HV*	Vented	IP15	Harmony	Wide	Triangular
IP15 HV*	Vented	IP15	13mm	Wide	Triangular
IP23 HV*	Vented	IP25	Harmony	Narrow	Triangular
IP25 HV*	Vented	IP25	13mm	Narrow	Triangular
IP4 LM WB	Vented	IP25	13mm	Narrow	Triangular
IP4 LM WB FS	Vented	IP25	15mm	Narrow	Triangular
IP13 U	Non-Vented	IP15	Harmony	Wide	Triangular
IP15 U	Non-Vented	IP15	13mm	Wide	Triangular
Shell Clarification		Name	Suits Liners
		IP15	IP10, IP12, IP13, IP15		* HV OR MV -THESE ARE THE SAME LINER MADE TWO LOCATIONS
		IP25	IP4, IP23, IP25
